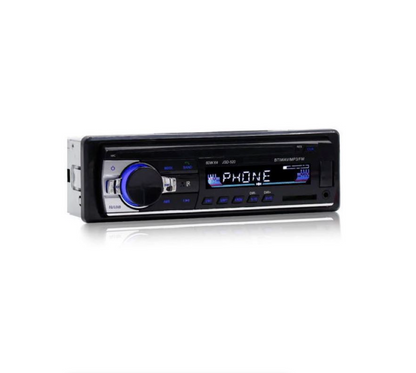

CAR MP3/USB/SD CARD/AUX RADIO 164E

Feature:
-Elegant carry case design, with clear LCD display, LED security light
-Support MP3/WMA/WAV/APE file playback from USB/SD Card (Maximum support 32GB)
-Support FM Radio, automatic frequency adjustment
-Support hands-free calls, answer or hand up the phone after connect the radio via bluetooth
-Bluetooth function, play music from your phones via bluetooth

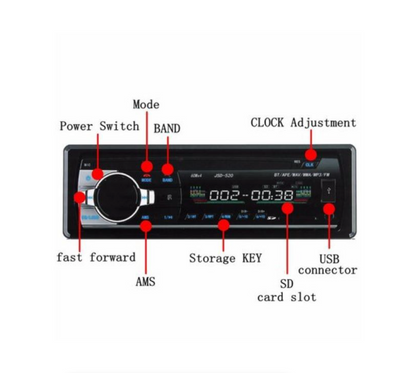

-Volume Control/ Real Time Clock Function/ FM Radio/ Electronic Preset Equalizer Control
-Auto memory preset store
-Remote Control
-Mounting Accessories included

Specification:
-Panel Size: 188 x 150 x 58mm (WideDeepHeight)
-Installation Dimension: 178 x 150 x 50mm (WideDeepHeight)
-Quantity: 1 piece
-Power Supply: 12V
-Max. Power Output: 60W×4
-FM Frequency Range: 87.5-108.0MHZ
-Back Light: Blue
-English Manual: Yes

Bluetooth Connecting Method:
Turn on your phone BLUETOOTH function, search on and connect the "CAR/btmp3" item, enter password "0000" (if needed),
press MODE button to the bluetooth function, then the MP3 Player is now available for use.

Wiring Guide:
Testing Methods:
-Twist the RED and YELLOW wire together and connect to the anode. The BLACK wire connect to the cathode.
-Connect one piece of the wires to the horn, do not touch the wires each other.
Installing Methods:
please DO NOT electrify the machine before you connect the wires, otherwise it will damage the machine.
-The YELLOW wire connect to the anode of accumulator, while the BLACK cathode.
-The RED wire connect to the car key ignition.
-If your cars have any subwoofers or exterior antennas, you also need to connect the BLUE wire.
-Otherwise wrap the BLUE wire with adhesive plaster for other car models.
-Horn has positive and negative electrode, connect them according to the methods.

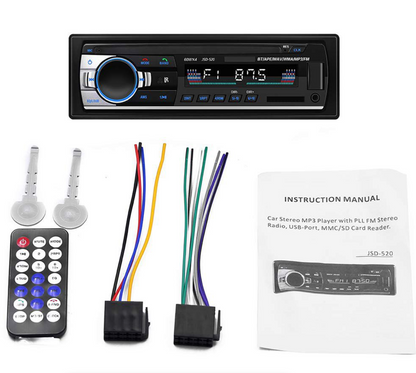

What's in the box
1 x Bluetooth MP3 Player
1 x Remote Control
1 x Cable
1 x English Manual
1 x Packing Box
